AMC 20 Truss 1

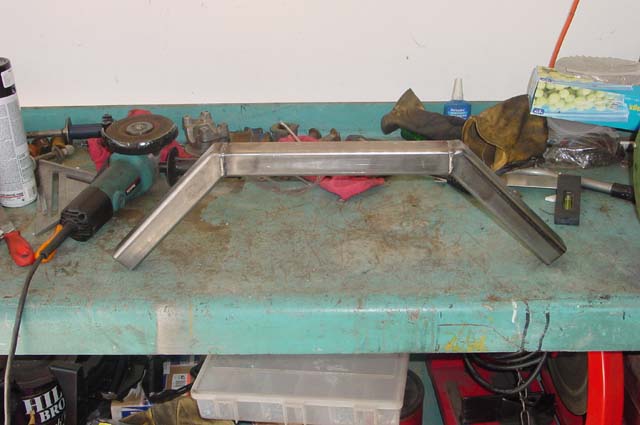

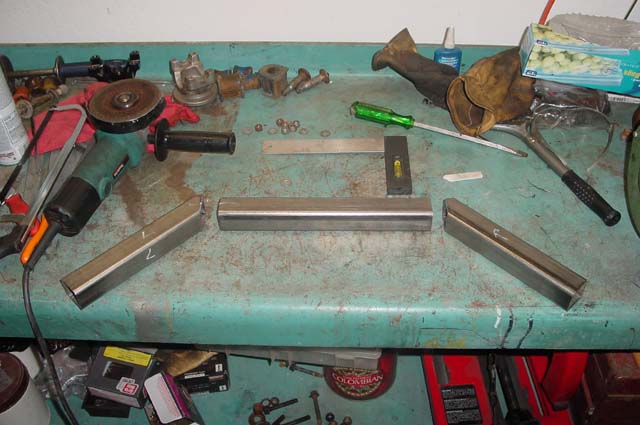

I thought about a few different designs Ive seen but most of them required welding to the cast housing which I wanted to avoid. This should add significant strength and eliminate the tube twisting issues. Probably over kill but it was fun to do.

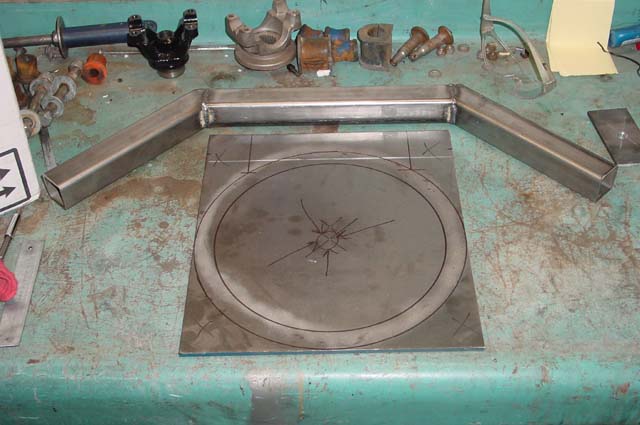

The back plate will bolt to the truss with some brackets and also make a much better skid than the stock cover.

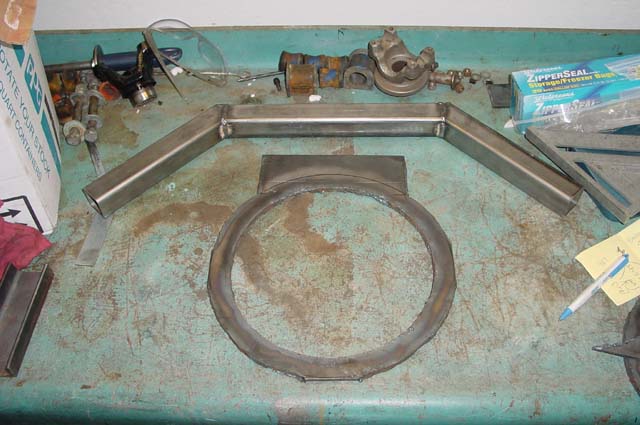

Here is the backing plate after being cut with a plasma cutter. Big thanks to Chris for letting use his cutter. It was my first time using a plasma cutter, I was pretty impressed. I did heat up the ring pretty good and it warped a little but I think it will work out fine.

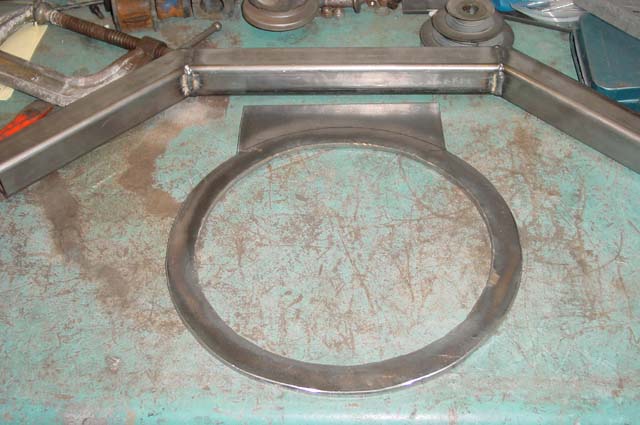

The ring after I cleaned it up a little.


I think I might get one of these Missouri Offroad covers, I like this guys stuff he builds.
